combiloop CL2G

FOR CONTINUOUS USE OF UP TO 100 BAR

Mobile, compact high-pressure unit with 3-chamber tank system for continuous use of high pressure at machine tools. Well suited for all materials, even for materials producing fine chips like brass and aluminium. Protected function principle of preseparation of dirt in a 3-chamber tank system.

Suitable for lathes by:
Citizen, DMG Mori, Manurhin, Star, Tornos, Tsugami, to name but a few.

Technical data
Equipment
  • Approx. 1050 x 590 x 1120 mm (L x W x H), weight approx. 270 kg
  • < 100 bar, high-pressure pump as constant pump (gear pump), 3-chamber tank system with pre-separation, 200 l clean liquid tank, electronic control
  • Power supply 3∼/ PE 400 V / 50 Hz
Flow rate
  • 9 / 12 / 16 / 20 / 24 l/min
Pressure
  • Progressive up to 100 bar
Filter
  • 150 μm pre-filter
  • Exchangeable filter, mesh washable
  • Double changeover filter, mesh washable
Filter fineness
  • 40 μm, 60 μm
Operation
  • Cutting oil
  • Water emulsion (min. 8 % oil content)
Service connections
  • Up to 10 controllable service connections
Degree of machine contamination
more

FUNCTION

Baugruppenzeichnung der Hochdruckanlage combiloop CL2 G von Müller Hydraulik
Baugruppenzeichnung der Hochdruckanlage combiloop CL2 G von Müller Hydraulik

Caption:

    1. Modern housing with 200-liter 3-chamber tank system
    2. Transfer pump
    3. Pre-separation chamber (150 μm) with access opening

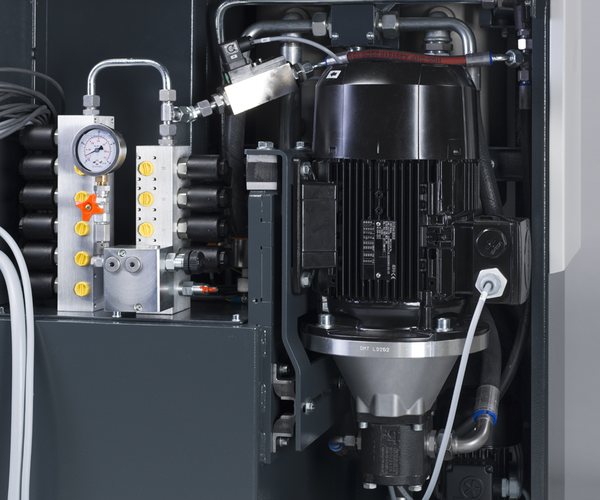

    4. Motor and high-pressure pump (gear pump)

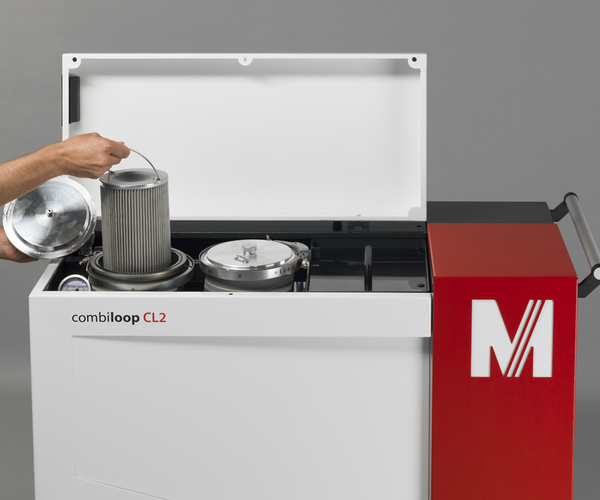

    5. Fine filter as double changeover filter, 2x single filter (replace / clean)
    6. Reverse tap (filter I or filter II)
    7. Control valve with display for smooth adjustment of the operating pressure
    8. Manifold with controllable service connections
    9. Status display (clear, modern functions visualisation via LED colour coding system)
    10. Electronic control
