combiloop CL3G

BEST-IN-CLASS HIGH-PRESSURE SYSTEM. FOR MORE MONEY IN YOUR POCKET!

Temperature stability and extremely economical with oil. The smallest footprint for flushing capacities of up to 60 l/min in the emulsion. Sustainability and Industry 4.0 safety features as well as a 250 l clean liquid tank integrated as standard. Your benefit? Maximum service life, maximum operating cost reduction, noticeable production area optimisation. With maximum process reliability. combiloop CL3 G – the high-pressure system for all those who already stand for progress and the future in high-pressure cutting with cooling lubricants.

Suitable for lathes by:
Citizen, DMG Mori, Manurhin, Star, Tornos, Tsugami, to name but a few.

Technical data
Equipment
  • Approx. 1,422 x 602 x 1,240 mm (L x W x H), max. weight approx. 742 kg
  • < 300 bar, eco+ self-regulating piston pump, 250 l clean liquid tank, electronic control
  • Power supply 3∼/ PE 400 V / 50 Hz
Flow rate, depending on the configuration
  • 9–60 l/min
Pressure
  • 30 bar at 60 l/min and 3.0 kW driving power
  • 50 bar at 45 l/min and 3.5 kW driving power
  • 70 bar max. at 40 l/min and 4.5 kW driving power
  • 80 bar max. at 27 l/min and 4.0 kW driving power
  • 110 bar max. at 27 l/min and 5.5 kW driving power
  • 130 bar max. at 20 l/min and 4.0 kW driving power
  • 150 bar max. at 20 l/min and 5.5 kW driving power
  • 210 bar max. at 12 l/min
  • 300 bar max. at 9 l/min
Filter / Filter fineness
  • Replaceable filter, glass fibre: 25 μm (optional 10 μm)
  • Double changeover filter, glass fibre: 25 μm (optional 10 μm)
  • Automatic filters: 30 μm, bypass filter, sludge removed in wire mesh collector (150 μm)
  • Cascade filter, preliminary filter: 500 μm, post-filter: 40 μm, both washable (optional fine filter: 25 μm, 10 μm)
    Operation
    Service connections
    • Up to 10 controllable service connections
    Features
    • Flow sensor as standard
    • Early warning for filter change
    • Cooling: full and bypass flow
    • Clear, modern functions visualisation via LED colour coding system

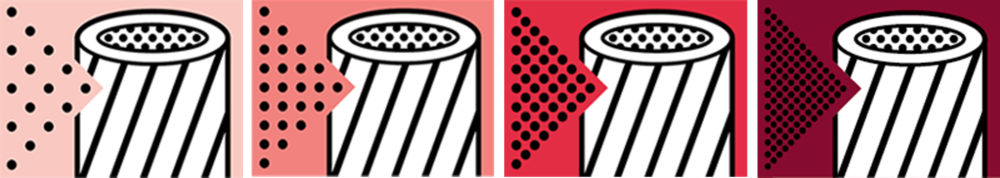

    Degree of machine contamination
    more

    FUNCTION

    Baugruppenzeichnung der Hochdruckanlage combiloop CL3 G von Müller Hydraulik
    Baugruppenbild der Hochdruckanlage combiloop CL3 G von Müller Hydraulik

    Caption:

      1. Modern housing with 250-liter clean liquid tank
      2. Transfer pump for filter cycle
      3. eco+ high-pressure pump in control pump technology
      4. Self-cleaning automatic filter (option)
      5. Plate heat exchanger
      6. Ball valve for bypass filtration (changes over when clean liquid tank is full)
      7. Valve block with controllable service connections
      8. Touch panel for system operation
      9. Type plate
      10. Main switch
      11. Electronic control unit (not visible)
      12. Flushing tank
      13. Collecting strainer basket for filter sludge (not visible)
      14. Compressed air connection
      15. LED status indication
      16. Flow sensor
      17. Pressure control
      18. Supply and return of cooling water for the plate heat exchanger
