combiloop CL5

TAILORED POWER COOLING LUBRICANT SYSTEM

Your products are characterised by high precision and perfection? Your processes are clocked from beginning to end? Your cooling lubricant system must be perfectly tuned? Offering a flushing capacity of 300 liters a minute, automatic filtration, automated sludge discharge, user configurable pump parameters, high-pressure tool actuation, and optional medium temperature regulation, the combiloop CL5 leaves no wish unfulfilled.

Suitable for lathes by:
Citizen, DMG Mori, Manurhin, Star, Tornos, Tsugami, to name but a few.

Technical Data
Equipment
  • Size variable on request, weight depending on the stage of expansion
  • < 1,200 bar, eco+ self-regulating piston pump, high-performance reversible flow filter (40 μm), transfer pump, 250–2,000 l clean liquid tank, electronic control
  • Power supply 3∼/ PE 400 V / 50 Hz
Flow rate
  • Low-pressure system delivering up to 200 l/min
  • High-pressure system up to 100 l/min
Pressure
  • Depending on flow rate up to 1,200 bar
Filter / Filter fineness
  • Automatic filter (40 μm), full flow filtration, desludging into wire mesh collector (150 μm)
  • Diverse fine filters available depending on pump technology
Operation
  • Cutting oil
  • Water emulsion (min. 8 % oil content)
Service connections
  • Up to 12 controllable service connections
Degree of machine contamination
more


FUNCTION

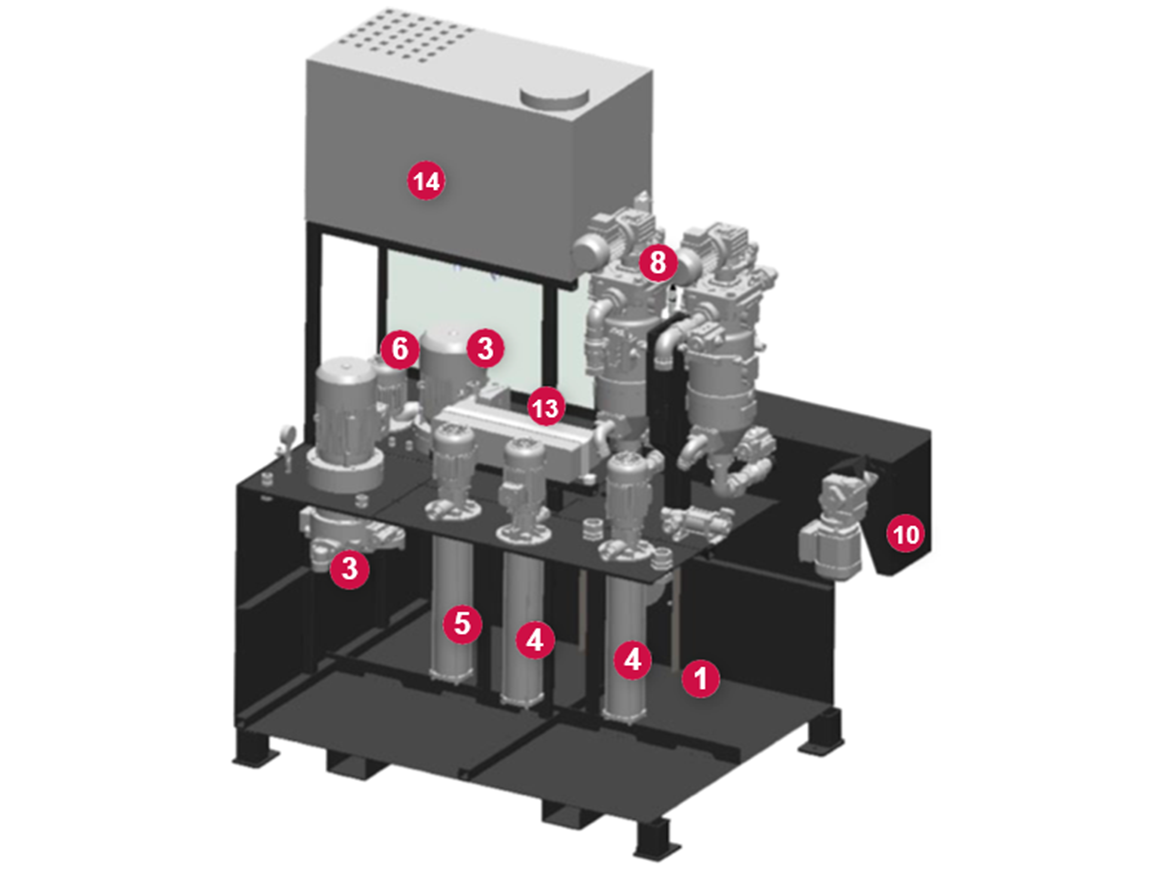

Baugruppenzeichnung der Hochdruckanlage combiloop CL5 von Müller Hydraulik

Caption:

  1. Clean liquid tank
  2. Reciprocating pump for filter cycle (not visible)
  3. eco+ high-pressure pump with self-regulating piston pump technology
  4. Low-pressure pumps for flood cooling
  5. Low-pressure pump for Niagara flushing
  6. Low-pressure pump for cover flushing
  7. Level and temperature sensor
  8. Self-cleaning automatic filter combination for full flow
  9. Collecting chamber for filter sludge (not visible)
  10. Automated sludge discharge (option)
  11. Touch panel for system operation (not visible)
  12. Valve block with controllable service connections (not visible)
  13. Plate heat exchanger (option)
  14. Cooling system (option)
  15. Electronic control (not visible)
