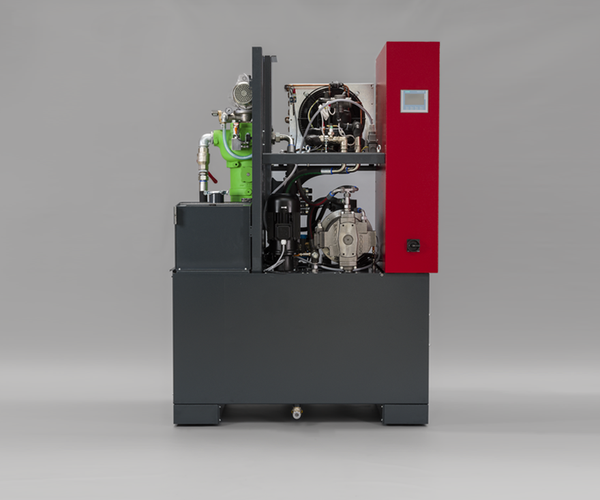

combiloop CL4G

A STANDARD WITH A HIGH LEVEL OF INDIVIDUALISATION

You need high performance flushing? And there are fine chips and a high contamination level on your machine? Your standard is the highest surface quality? Then the combiloop CL4G is a must. Based on three sizes of clean liquid tank, it provides high-pressure and bypass or full flow filtration. In addition, thanks to its intelligent modular design, it can be modified to optimal effect to your filtration, flushing, and cooling needs. The combiloop CL4G makes individualisation the standard!

Suitable for lathes by:
Citizen, DMG Mori, Manurhin, Star, Tornos, Tsugami, to name but a few.

Technical DataCL4G-400CL4G-600CL4G-800
Equipment
Connections
  • Power supply 3∼/ PE 400 V / 50 Hz
Pumps
  • Up to 2
  • Up to 3
  • Up to 4
Flow rate
and pressure
  • Max. 60 l/min, max. 300 bar
  • Max. 150 l/min, max. 300 bar
Filtration / Filter fineness
  • Cascading filter (pre-filter 500 μm, afterfilter 40 μm; both washable)
  • Automatic filter (40 μm)
  • Automatic filter (40 μm)
  • Compact band filter (40 - 80 μm)
Operation
  • Cutting oil
  • Water emulsion (min. 8 % oil content, eco+ high pressure pump as speed-controlled screw pump)
Service connections
  • Up to 8 controllable service connections
Degree of machine contamination
more

FUNCTION

Baugruppenzeichnung der Hochdruckanlage combiloop CL4 G von Müller Hydraulik
Baugruppenzeichnung der Hochdruckanlage combiloop CL4 G von Müller Hydraulik

Caption:

  1. Clean liquid tank
  2. Reciprocating pump for filter cycle
  3. Self-cleaning automatic filter (option)
  4. Flushing tank with wire mesh collector for filter sludge
  5. Recirculation pump, flushing tank (option)
  6. Bypass filtration (option)
  7. eco+ high-pressure pump with self-regulating piston pump technology / low-pressure pumps (to pump configuration)
  8. Valve block with controllable service connections
  9. Cooling circuit pump (option)
  10. Cooling system / panel heat exchanger (option)
  11. Drain tap
  12. Electronic control with touch panel for system operation
